Contacting Encoders

Rotary encoders are ideal for use as digital panel controls or position sensing devices in a wide range of applications where digital circuitry is used. These devices are available in contacting and optical types and in various resolutions. Some models are available with push momentary switch and detents.

Typical applications include temperature control, speed control, position sensing, menu selection, and volume control.

Design Kits Bourns offers Design Kits for this product line.

Conflict Mineral Source Reporting for Sensors, Panel Controls, Encoders, Precision Potentiometerss, Dials: CFSI_CMRT4-01

Series	Data Sheet	Photo	Type	Package Diameter	Circuit Compatibility	RoHS Compliant	Design Files

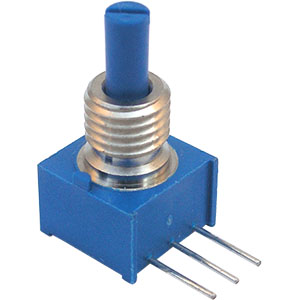

3315			Incremental	9 mm	TTL compatible	3315Y-L	Downloads
EAW			Absolute	22 mm	10 mA @ 10 VDC	EAW

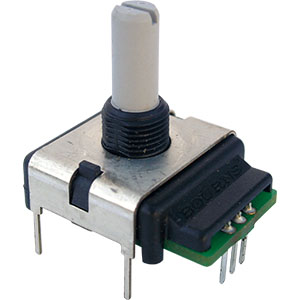

ECW			Incremental	22 mm	10 mA @ 10 VDC	ECW-L	Downloads

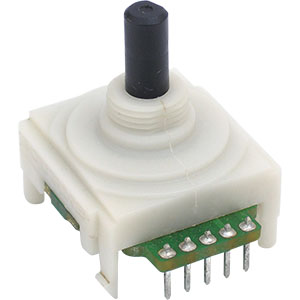

EPS			Incremental	22 mm x 27 mm	10 mA @ 10 VDC
ES			Incremental/ Shaftless	20 mm	10 mA @ 10 VDC	ES-L	Downloads

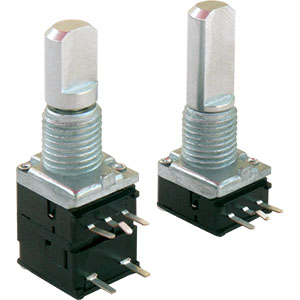

PEC09			Incremental	9 mm	10 mA @ 5 VDC	PEC09

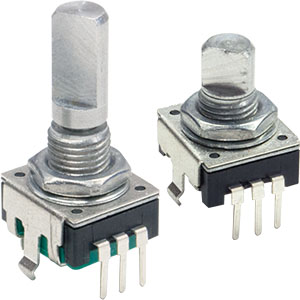

PEC11L			Incremental	11 mm	10 mA @ 5 VDC	PEC11L	Downloads
PEC11R			Incremental	12 mm	1 mA @ 5 VDC	PEC11R	Downloads

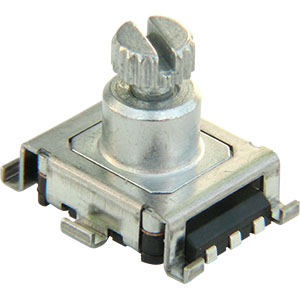

PEC11S			Incremental	12 mm	1 mA @ 5 VDC	PEC11S	Downloads

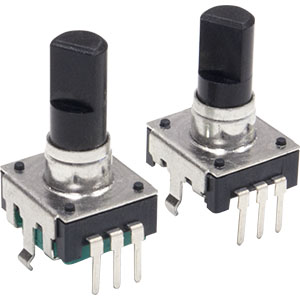

PEC12R			Incremental	12 mm	1 mA @ 5 VDC	PEC12R	Downloads

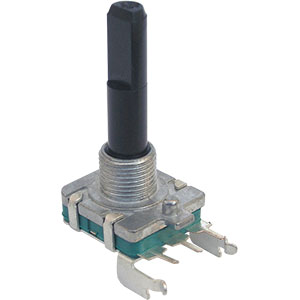

PEC16			Incremental	16 mm	1 mA @ 5 VDC	PEC 16	Downloads

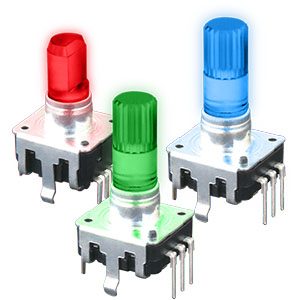

PEL12D			Incremental	12 mm	0.5 mA @ 5 VDC	PEL12D	Downloads
PEL12S			Incremental	12 mm	0.5 mA @ 5 VDC	PEL12S
PEL12T			Incremental	12 mm	0.5 mA @ 5 VDC	PEL12T	Downloads

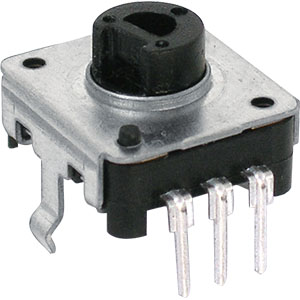

PES12			Incremental/Shaftless	12 mm	1 mA @ 5 VDC	PES 12	Downloads

Magnetic Encoders

Rotary encoders are ideal for use as digital panel controls or position sensing devices in a wide range of applications where digital circuitry is used. These devices are available in contacting and optical types and in various resolutions. Some models are available with push momentary switch and detents

Typical applications include temperature control, speed control, position sensing, menu selection, and volume control.

Conflict Mineral Source Reporting for Sensors, Panel Controls, Encoders, Precision Potentiometerss, Dials: CFSI_CMRT4-01

Series	Data Sheet	Photo	Type	Package Diameter	Circuit Compatibility	RoHS Compliant	Design Files

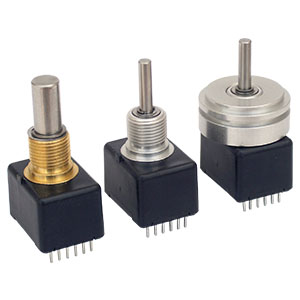

EMS22A			Non-Contacting Absolute Encoder	21 mm x 16 mm	TTL, CMOS	EMS22x	Downloads
EMS22D			Non-Contacting Direction/Step Encoder	21 mm x 16 mm		EMS22x
EMS22P			Non-Contacting PWM Encoder	21 mm x 16 mm		EMS22x
EMS22Q			Non-Contacting Incremental Encoder	21 mm x 16 mm		EMS22x	Downloads

Optical Encoders

Rotary encoders are ideal for use as digital panel controls or position sensing devices in a wide range of applications where digital circuitry is used. These devices are available in contacting and optical types and in various resolutions. Some models are available with push momentary switch and detents.

Typical applications include temperature control, speed control, position sensing, menu selection, and volume control.

Conflict Mineral Source Reporting for Sensors, Panel Controls, Encoders, Precision Potentiometerss, Dials: CFSI_CMRT4-01

Series	Data Sheet	Photo	Type	Package Diameter	Circuit Compatibility	RoHS Compliant	Design Files

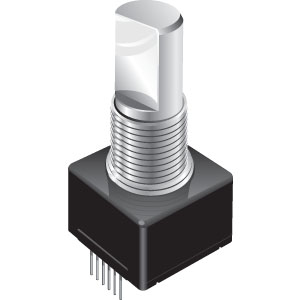

EM14			Incremental	14 mm	TTL, CMOS, HCMOS compatible		Downloads
EN			Optical/Incremental	21 mm x 16 mm	TTL, CMOS	EN-L	Downloads
ES14			Incremental Quadrature	14 mm	TTL, CMOS, HCMOS compatible		Downloads
